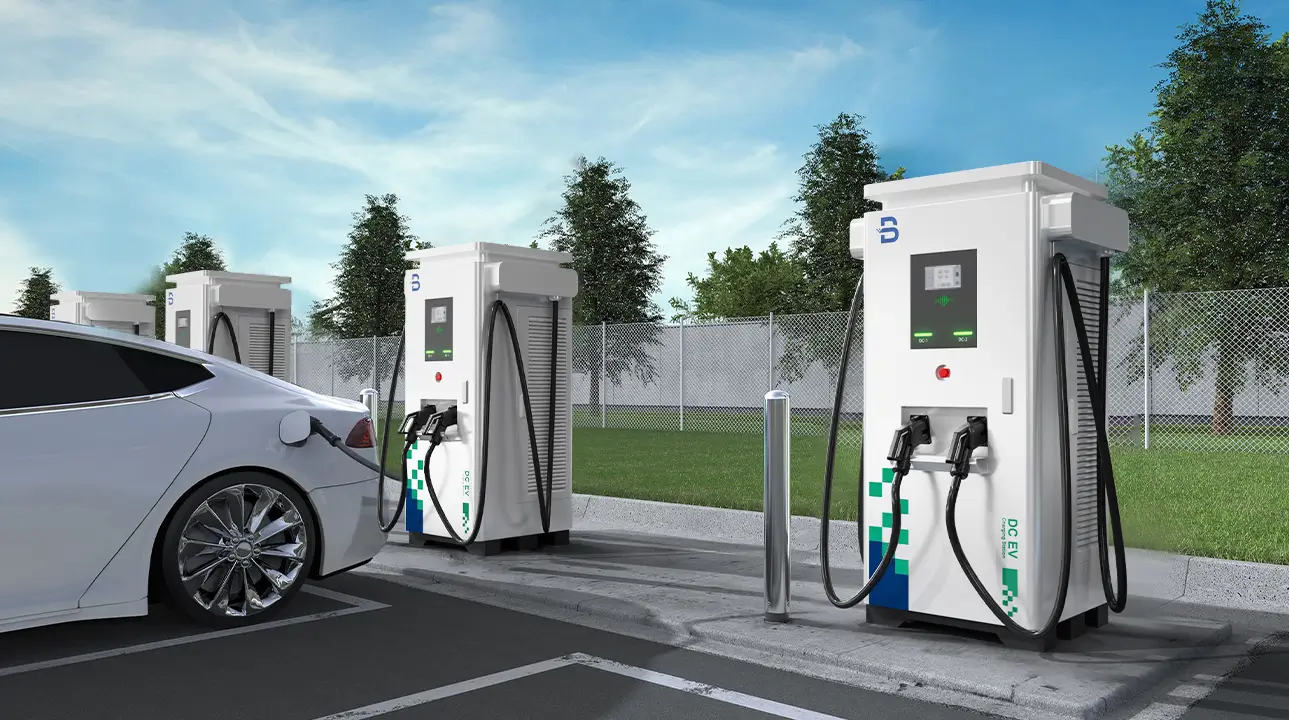

The EVB DC EV charging station is a cutting-edge solution in EV charging technology, featuring advanced liquid cooling and capacities ranging from 320kW to 360kW. Our rapid EV charging stations are designed for speed and efficiency, it delivers ultra-fast charging—adding up to 300km of range in just 10 minutes for Tesla and other electric vehicles. EV charging infrastructure plays a key role in DC car charging stations, including the 360kW charger, 350kW DC fast charger, 350kW DC charger, and fast DC charger for EVs. For enhanced energy management and reliability, the station also supports configurations with DC fast chargers with battery storage, making it a future-ready choice for rapid EV charging stations.
System efficiency≥ 95%, low energy consumption.
Input voltage & short circuit protection ensure safe DC fast charging.
Low-noise design ideal for commercial EV charging solutions.
Bright display color for high outdoor brightness.
Convenient charging from multiple angles.
With a powerful 500A charging current, the EVB Liquid Cooling DC Fast Charging Station can achieve remarkable charging speeds. In only 10 minutes, our 350 kw DC fast charger can provide a full charge to a 300km range Tesla car. EV charging technology at EVB enables super fast and exceptional charging capability, allowing drivers spend less time waiting and more time on the road, making long-distance travel faster, easier, and more convenient than ever before.

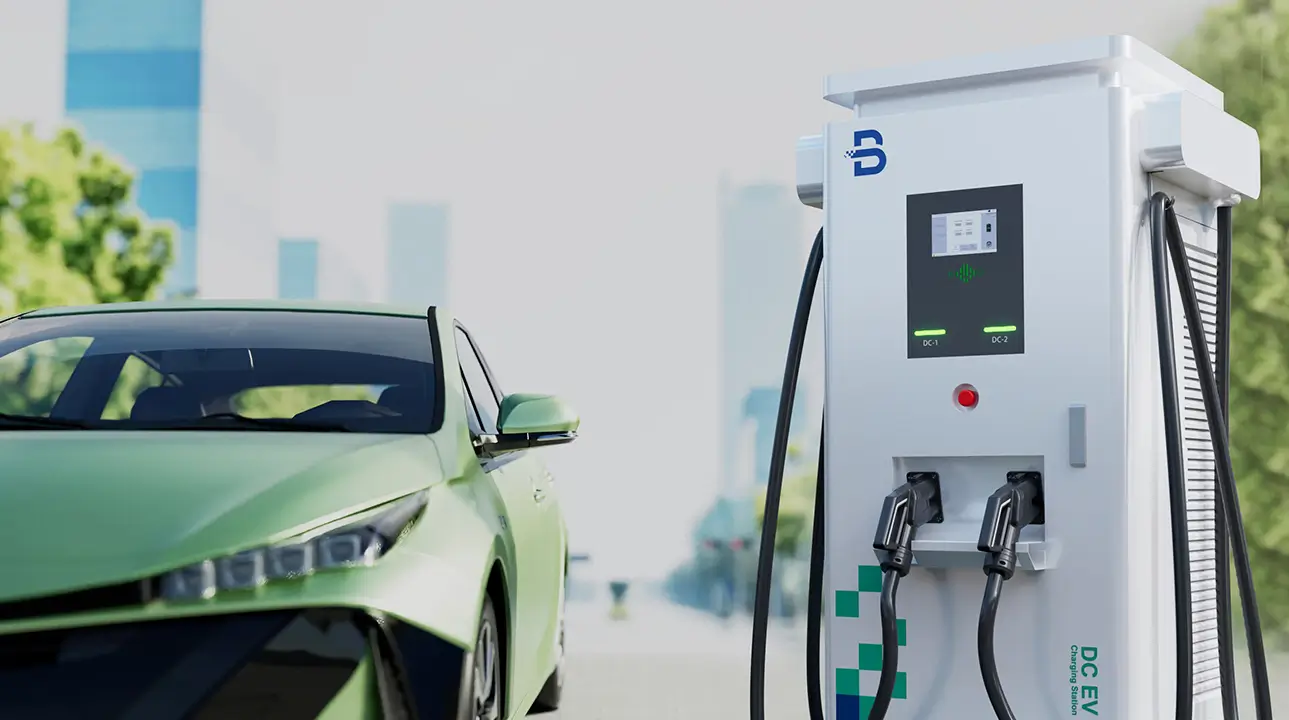

EVB’s advanced EV charging technology features intelligent liquid cooling, making the charging cable up to 40% lighter and thinner. Car owners can quickly connect the cable to the vehicle and observe the rapid charging of the battery. The liquid cooling connectors are built for durability, able to withstand high temperatures, cold, moisture, dust, and internal pressure—ensuring reliability during extended charging sessions. This design enhances safety and performance in demanding environments. Dc fast charger with battery storage’s design also allows them to withstand significant pressure to prevent leaks and maintain their integrity during prolonged charging sessions. The DC fast charging station is ideally suited for commercial EV charging solutions, integrating seamlessly into modern EV charging infrastructure.
The EVB liquid-cooled DC charger and ESS solution combine efficient EV charging technology with flexible battery energy storage capabilities, providing outstanding charging efficiency and reliability. This commercial EV charging solution is suitable for various scenarios, including public charging stations, industrial applications, urban transportation, and infrastructure emergency backup, offering reliable energy solutions for diverse applications. It’s a smart, scalable choice for diverse energy needs.
| Models | BGDC60‑D | BGDC90‑D | BGDC120‑D | |
|---|---|---|---|---|
| Item |  | | | |
| Structure Description | ||||
| Shell Material | Sheet Metal | |||
| Dimension | 700*520*1800(L*W*T) | |||
| Weight | ≤500kG | |||
| Installation Method | Floor-stand Type | |||
| Cable Routing | Bottom Inlet Wiring,Up Outlet Wiring | |||
| Cable Length | 5 M | |||
| Charging Outlets | Double(CCS1+CCS1) Double (CCS1+CHADEMO) Double(CCS2+GBT) Double(CHADEMO+CHADEMO) | Double(CCS2+CCS2) Double (CCS2+CHADEMO) Double(CHADEMO+GBT) | Double(CCS1+CCS2) Double(CCS1+GBT) Double(GBT+GBT) | |
| Connectivity Authorization | RFID, App | |||
| Screen | 43‑Inch Advertising Screen/LED Light | |||
| Electrical Specification | ||||
| AC Input Voltage | AC380V±15% ,3P+N+PEAC | |||
| Input Frequency | 50Hz/60Hz | |||
| Consumption | ≤40W | |||
| Rated Power | 60kW | 90kW | 120kW | |
| Output Voltage Range | CCS1/CCS2/GBT: 150Vdc –1000Vdc; CHADEMO: 150Vdc –500Vdc | |||
| Output Current | CCS1/CCS2/GBT:0~250A;CHADEMO:0~125A | |||
| Efficiency | ≥95% | |||
| Power Factor | ≥0.99(load:100%) | |||
| Functionate design | ||||
| User Interface | Emergency Stop Button,LED Indicator,Card Swiping,Touch Screen | |||
| Charging Stands | IEC 61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851-23:2014; EN 61851-24:2014 | |||
| Communication | ||||
| OCPP | OCPP 1.6J | |||
| Network Interface | Ethernet/4G | |||
| Environment Condition | ||||
| Application Place | Indoor/Outdoor | |||
| Working Latitude | <2000m | |||
| Working Temperature | ‑30°C ~+50 °C | |||
| Working Humidity | 5%~95% | |||
| Protection Level | IP55 | |||
| Natural Cooling | Forced‑air Cooling | |||
| MTBF | 24 Months Warranty | |||
| Security Design | Over/Under Voltage Protection,Overlord Protection,Current Leakage Protection, Grounding Protection,Over Temp Protection,Lightening Surge Protection | |||
From consultation to installation, our expert team ensures a comprehensive EV charging solution tailored to your needs.
